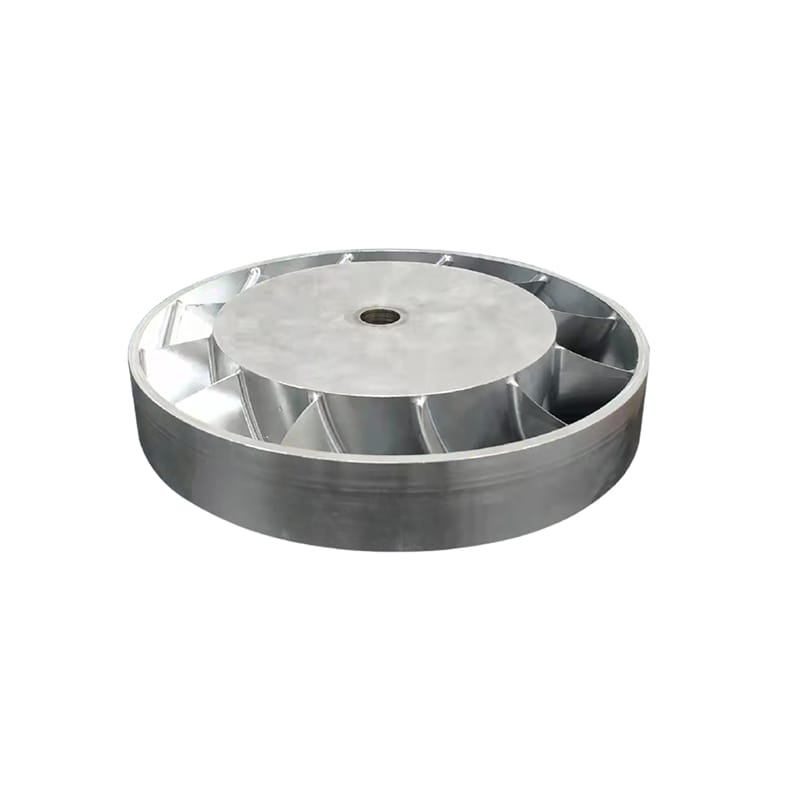

Complex Muli-axis Linka CNC Parts In Aero-engine

Complex muli-axis linka CNC parts in Aero-engine

1.Product Introduction

The processing technology of Complex Muli-axis linka CNC parts in Aero-engine is CNC Micro machining with CNC milling.

It is a highly complex and precise parts. It can directly affects the performance, reliability and economy of the aircraft.

The blade surfaces of the integral closed blisk are mostly free-form surfaces, which are difficult to process, especially the closed blisks of aero engines, nuclear reactor cooling pumps, etc., which require high machining accuracy and good blade consistency, so they have always been in the field of mechanical manufacturing.

Difficult problem.The multi-axis CNC milling machining center can well solve the processing problems of the integral closed blisk, and therefore has become one of the most widely used processing equipment for this kind of parts.

2.Product Parameter (Specification)

The surface roughness is Ra 0.1-3.2.

CNC turning work range is φ0.5mm-φ150mm*300mm

CNC milling work range is 510mm*1020mm*500mm

3.Product Feature And Application

Complex Muli-axis linka CNC parts in Aero-engine can be realized five-axis linkage processing, and process the integrated closed blisk with high-precision interpolation feed, which can achieve the ideal blade contour accuracy and consistency requirements.

Precision parts processing, such as impellers, blisks, molecular pump blades, turbine shells, molds, shells, etc., meet the needs of aerospace, auto parts, hydraulic parts, precision molds and other industries.

4.Product Details

Tolerance of all dimension is between 0.02mm~0.1mm.Tolerance key assembly is 0.01mm.

These Aircraft Machining parts are controlled strictly in accordance with NADCAP – NDT certification standard.

The large production volume is one of the most advantage. We possess a 3D CMM that can fully inspect the density and tolerance within minimum limited.

5.Deliver,Shipping And Serving

The package is standard exported package. All kinds of shipping ways can be used by express, by air and by sea.

To get approval and satisfactory from our customers ,It is necessary for us to prompt delivery, careful shipping arrangement and continuous services.

We deeply implement the customer-oriented, quality-first business philosophy.

We also implement the “Performance evaluation program” to continuously improve our technical capability, quality and management skill and service.

6.FAQ

who are we?

Sunbright is a high-tech enterprise which integrates R&D, production and sales of high-end products and precision components. Products are widely used in communications, precision instruments, medical equipment, high-speed trains, auto, aviation and other industries.

how can we guarantee quality?

The workshop and production mass are strictly control in accordance with ISO 9001 and AS 9100D certification standard. The pre-production sample confirmed before mass production, final Inspection before shipment.

what can you buy from us?

CNC precision Machining parts including CNC turning and CNC milling, Custom CNC parts, CNC auto spare parts, Die casting parts, forging parts, Injection mold,mould etc.

why should you buy from us not from other suppliers?

We are experienced in customization for over 20 years. With the concept of “pragmatism”, we provide customers with one-stop high-quality solutions from raw materials to process engineering and manufacturing. Products are widely used in communications, precision instruments, medical equipment, high-speed trains, auto, aviation and other industries.

what services can we provide?

We can provide CNC precision machining service, Sheet metal fabrication service, injection plastic mold service, some full products service of Beauty Care Tools and Top ornaments.
